High-Performance Fillings for Fiber Treatment
Efficient fiber treatment with state-of-the-art products
With our extensive experience at Voith, we design effective and efficient fillings to lever the performance of your machines. Designed specifically for refiners, deflakers and dispergers, our key performance parts deliver precise mechanical treatment to shape and optimize your fiber properties. Get the exact treatment your process demands while drastically reducing energy consumption.
Find the perfect filling for your machine
| Feature | Process | |
| PluraMaze | Our newest refiner filling for the lowest energy consumption and outstanding lifetime | Refining |
| Pluralis |
Well-known refiner filling for effective and efficient fiber treatment |
Refining |
| Pluralis Conical |
Premium high-tech filling engineered specifically for Valmet JC03, JC04, RF03 and RF04 conical refiners |
Refining |
| TheWall | Energy-efficient and long-lasting disperger filling for superior stickies removal and best optical results | Dispersion |
| High teeth filling |
High-intensity filling engineered to maximize optical properties through powerful fiber dispersion |
Dispersion |
| Low teeth filling |
Reliable conventional filling built as an economical solution for budget-conscious mills |
Dispersion |
| Teeth ring filling | Effective deflaker filling made from premium forged steel for longest lifetime | Deflaking |
| Teeth filling |
Robust deflaker filling designed for DF2 and DF4 Bird/Escher-Wyss models |
Deflaking |
Product range

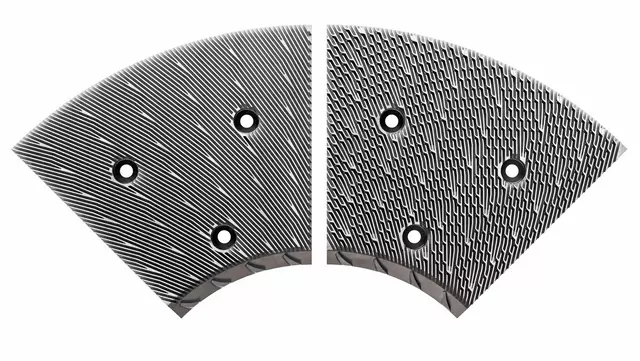

PluraMaze
High-performance refiner fillings for energy-efficient stock preparation
Voith’s PluraMaze represents a new generation of refiner fillings designed to improve energy efficiency, component lifetime or refining results in stock preparation.
These refiner fillings are based on a patent-pending, labyrinth-like geometry that optimizes the flow of the fiber suspension in the refining zone. By significantly reducing internal backflow, PluraMaze drastically lowers no-load power and minimizes energy losses.

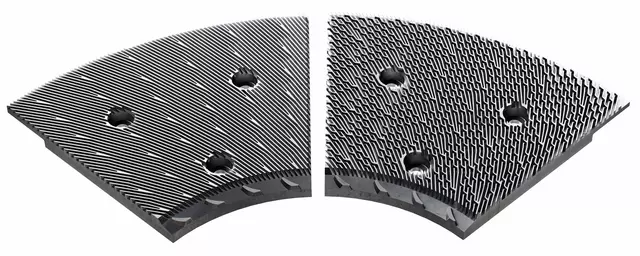

The innovative bar design increases effective edge length, enabling more efficient, low-intensity refining. At the same time, improved feeding and higher wear volume contribute to stable operation and longer filling lifetime.
Available in three variants, the perfectly fitting PluraMaze refiner filling type can be selected according to your specific operational priorities – whether the focus is on energy savings, lifetime or improved refining results.
PluraMaze Variants
-
PluraMaze 5.3 is ideally suited for customers with a primary focus on refining results and energy efficiency
-
PluraMaze 5.6 offers a balanced combination of energy efficiency, lifetime and refining results
-
PluraMaze 6.5 is optimized for maximum lifetime and energy efficiency
Pluralis
Our proven Pluralis design offers effective pulp refining in stock preparation. Thanks to the special arrangement and shape of the bars, the fibers can be treated with low intensity, resulting in high product quality.
-
Reduction in the number of refiners possible
-
High hydraulic capacity with low no-load energy
-
Increased tear strength of the paper web
-
Fewer fines
-
Reduction of raw material costs by optimizing the potential of the fibers
-
Proven reduction of energy costs
-
Longer service life of the refiner fillings due to gentle, low-intensity refining
-
Easy maintenance
Pluralis Conical
The proven design in a new shape
In an expansion of our existing Pluralis line, the Pluralis Conical fillings bring advanced refining technology to conical refiners. Papermakers get all the advantages of the high-performance Pluralis design for optimal fiber quality.
TheWall
Efficient fiber treatment through a unique design
The innovative design of the disperger filling TheWall ensures uniform distribution and feeding of the pulp. The rotor – equipped with feeding vanes and strategically arranged distribution teeth – drives this efficiency. The unique design with its partially closed tooth gaps allows operation of the filling with a gap width between 0.5 to 8.5 mm, preventing untreated fibers from passing through. TheWall also lowers energy consumption while improving the dispersion of dirt specks and stickies.

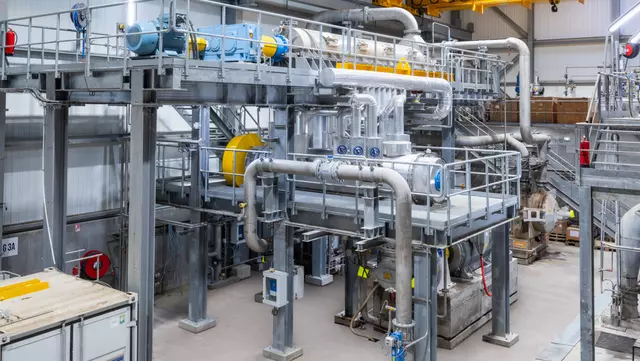

Combining the disperger filling TheWall with the newly developed Voith disperger InfibraDisp and the Compact Dispersion System yields superior results. In addition, the filling is available for all current Voith dispergers and selected models from other manufacturers.
Interview with Hartmut Langner, Paper and Board Mill Varel
The Varel paper and board plant has been using TheWall since May 2016. Hartmut Langner, paper production foreman at Varel, explains their search for an alternative to their previous disperger filling and why they chose Voith’s innovative solution.
